PNEUMATIC Control valves

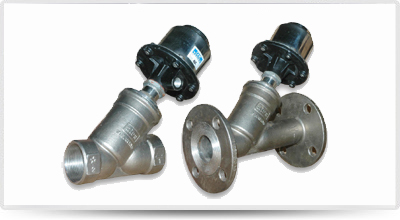

2/2 Way Angle Type – Y Type Control Valves – Y With Pneumatic Cylinder Operated / Angle Type Pneumatic Globe Valve 2 Way
SPECIFICATIONS:
Model : SRV – ALF
Valve Design : 2/2 Way Pneumatic Cylinder Operated Angle Type – Y Type Control Valves / Angle Type Pneumatic Globe Valve 2 Way
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1/2" to 4"
Material of Construction :
Body   / Bonnet / Plug : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M (S.S. 316 L), CAST STEEL (WCB 216) (Other Greads Are Available On Request)
Stem : S.S. 316, S.S. 304
Gland Seal : PTFE  V Seals Backed By Graphite Wiper Seal
Seat : PTFE
Pressure Rating : PN 10 - Up To 10 Bar
Temperature Rating : Up To 180° C
End Connection : Screwed End / Flanged Ends Drilled To
ANSI 150 #

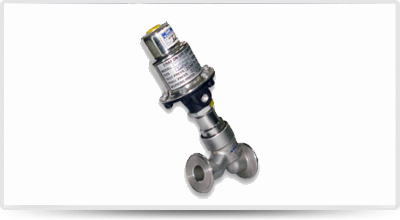

2/2 Way Angle Type – Y Type Control Valves – Y With Pneumatic Cylinder Operated / Angle Type Pneumatic Globe Valve 2 Way
SPECIFICATIONS:
Model : PYC
Valve Design : 2/2 Way Pneumatic Cylinder Operated Angle Type – Y Type Control Valves / Angle Type Pneumatic Globe Valve 2 Way
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1/2" to 4"
Material of Construction :
Body   / Bonnet / Plug : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M (S.S. 316 L), CAST STEEL (WCB 216) (Other Greads Are Available On Request)
Stem : S.S. 316, S.S. 304
Gland Seal : PTFE  V Seals Backed By Graphite Wiper Seal
Seat : PTFE
Pressure Rating : PN 10 - Up To 10 Bar
Temperature Rating : Up To 180° C
End Connection : Triclover Ends

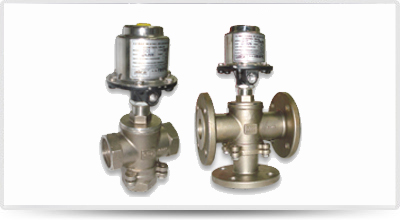

2 Way / 3 Way Pneumatic Cylinder Operated High Pressure Stright Type Control Valves – Pneumatic Globe Valve 2 Way / 3 Way
SPECIFICATIONS:
Model : 2 CV / 3 CV
Valve Design : 2 Way / 3 Way Pneumatic Cylinder Operated Stright Type Control Valves – Pneumatic Globe Valve 2way / 3 Way
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1/2" to 4"
Material of Construction :
Body   / Bonnet / Plug : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M (S.S. 316 L), CAST STEEL (WCB 216) (Other Greads Are Available On Request)
Stem : S.S. 316, S.S. 304
Gland Seal : PTFE  V Seals Backed By Graphite Wiper Seal
Seat : PTFE
Pressure Rating : PN 40 - Up To 42 Bar
Temperature Rating : Up To 180° C
End Connection : Screwed End / Flanged Ends Drilled To
ANSI 150 #/ 300 # /PN40

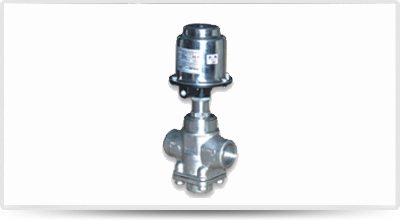

2 Way / 3 Way Pneumatic Cylinder Operated Low Pressure Stright Type Control Valves – Pneumatic Globe Valve 2 Way / 3 Way
SPECIFICATIONS:
Model : 2 LCS-F/3LCS-F
Valve Design : 2 Way / 3 Way Pneumatic Cylinder Operated Stright Type Control Valves – Pneumatic Globe Valve 2way / 3 Way
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1/2" to 4"
Material of Construction :
Body   / Bonnet / Plug : CF 8 (S.S. 304), CF 3 (S.S. 304 L), CF 8 M (S.S. 316), CF 3 M (S.S. 316 L), CAST STEEL (WCB 216) (Other Greads Are Available On Request)
Stem : S.S. 316, S.S. 304
Gland Seal : PTFE  V Seals Backed By Graphite Wiper Seal
Seat : PTFE
Pressure Rating : PN 40 - Up To 42 Bar
Temperature Rating : Up To 180° C
End Connection : Screwed End / Flanged Ends Drilled To
ANSI 150 # / Triclover Ends / PN10
