Butterfly valves

Leading supplier of quality industrial valves, actuators, pipe, hose, flanges, fittings and all accessories
suspendisse potenti. Duis in mauris massa. Aenean non tellus nisl, eget viverra turpis.

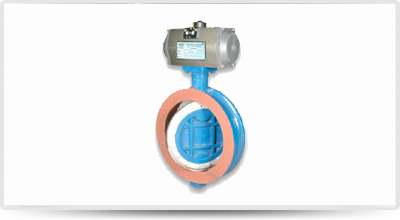

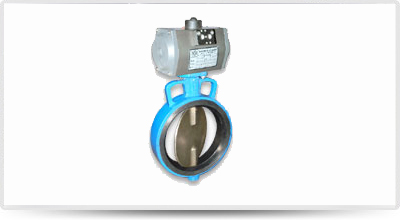

BUTTERFLY VALVE With Pneumatic Actuator Wafer - Lug Type Center Disc Design
SPECIFICATIONS :
Model : ECO
Valve Design : Wafer – Lug Type Center Disc Design Buttefly Valves
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1.1/2” To 48”
Material of Construction :
Body   : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316
Disc : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (Nylon – Teflon Coated / Rubber Lined)
Stem : S.S. 316, S.S. 304, And S.S.410
Gland Seal : PTFE  (GFT / CFT is available on request)
Seat : EPDM / Nitrile /Hayplon/Viton (Moulded Or Replacable Mufler type)
Pressure Rating : PN 10 / PN 16
End Connection : Wafer Type To Suit   ANSI 150 # Flanges (Other   Standard Also Available On Request)

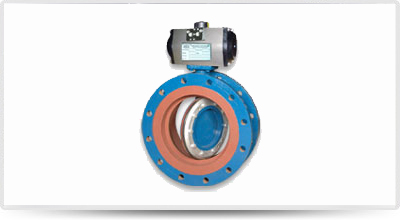

Butterfly Valve Double Flanged Short Pattern Double Flanged Type Center Disc Design Buttefly Valve With Pneumatic Actuator
SPECIFICATIONS :
Model : DFW -ECO
Valve Design : Short Pattern Double Flanged Type Center Disc Design Buttefly Valves
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1.1/2” To 48”
Material of Construction :
Body   : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316
Disc : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (Nylon – Teflon Coated / Rubber Lined)
Stem : S.S. 316, S.S. 304, And S.S.410
Gland Seal : PTFE  (GFT / CFT is available on request)
Seat : EPDM / Nitrile /Hayplon/Viton (Moulded Or Replacable Mufler type)
Pressure Rating : PN 10 / PN 16
End Connection : Wafer Type To Suit   ANSI 150 # Flanges (Other   Standard Also Available On Request)

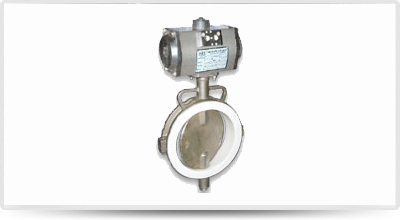

BUTTERFLY VALVE (Wafer -Type Center Disc 2 Piece Design Buttefly Valve With Pneumatic Actuator )
SPECIFICATIONS :
Model : TECO
Valve Design : Wafer Type Center Disc 2 Piece Design Buttefly Valves
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1.1/2” To 12”
Material of Construction :
Body   : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316
Disc : S.S. 304 / S.S. 316 (Teflon Coated / Linned)
Stem : S.S. 316, S.S. 304, And S.S.410
Gland Seal : PTFE  (GFT / CFT is available on request)
Seat : PTFE  – Teflon
Pressure Rating : PN 10 / PN 16
End Connection : Wafer Type To Suit   ANSI 150 # Flanges (Other   Standard Also Available On Request)

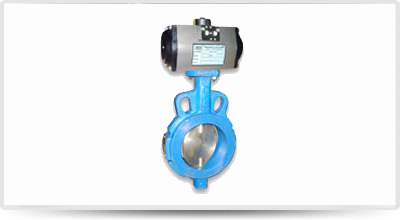

WAFER   TYPE   CENTER DISC DESIGN DAMPER VALVE WITH PNEUMATIC ACTUATOR
SPECIFICATIONS :
Model : DP
Valve Design : WAFER   TYPE   CENTER DISC DESIGN DAMPER VALVE
Actuator : SINGLE ACTING (SPRING RETURN) / DOUBLE ACTING
Size Range : 1,1/2" TO 20"
Material of Construction :
Body   : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Disc : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Stem : S.S. 316, S.S. 304, And S.S.410
Gland Seal : Grafite
Seat : No Seating, There is a Gap of 1mm
Pressure Rating : PN 1
End Connection : Wafer Type To Suit   ANSI 150 # Flanges (Other   Standard Also Available On Request)

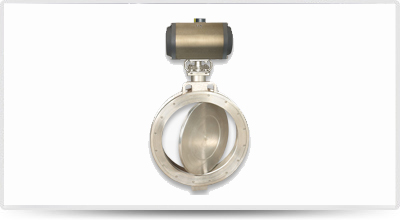

Double Flanged   Center Disc Design Damper Valve With Pneumatic Actuator
SPECIFICATIONS :
Model : DFD
Valve Design : Double Flanged   Center Disc Design Damper Valve
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1,1/2" TO 48"
Material of Construction :
Body   : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Disc : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Stem : S.S. 316, S.S. 304, And S.S.410
Gland Seal : Grafite
Seat : No Seating, There is a Gap of 1mm
Pressure Rating : PN 1
End Connection : Double Flanged To Suit   ANSI 150 # Flanges (Other   Standard Also Available On Request)
OFF SET DISC BUTTER FLY DOUBLE FLNAGE (Double Flanged Type   Off Set Disc Design Buttefly Valve With Pneumatic Actuator)
SPECIFICATIONS :
Model : OBFV
Valve Design : Double Flanged Type Off Set Disc Design Buttefly Valves
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 4” To 48” (Up To 100” In Fabricated Design)
Material of Construction :
Body   : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Disc : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Stem : S.S. 316, S.S. 304, And S.S.410
Gland Seal : PTFE  (GFT / CFT is available on request)
Seat : EPDM / NITRILE / PTFE
Seat Ring And Set Ring Retainer : S.S. 304
Pressure Rating : PN 10 / PN 16 /PN 25/150 # / 300 #
End Connection : Double Flanged Type With Drilling Of    ANSI 150 #/ PN 10/16 Awwa Flanges (Other   Standard Also Available On Request)
OFF SET DISC BUTTER FLY WAFER TYPE (Water – Lug Type   Off Set Disc Design Buttefly Valve With Pneumatic Actuator)
SPECIFICATIONS :
Model : OBFV
Valve Design : Wafer Type Off Set Disc Design Buttefly Valves
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 4” To 48” (Up To 100” In Fabricated Design)
Material of Construction :
Body   : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Disc : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Stem : S.S. 316, S.S. 304, And S.S.410
Gland Seal : PTFE  (GFT / CFT is available on request)
Seat : EPDM / NITRILE / PTFE
Seat Ring And Set Ring Retainer : S.S. 304
Pressure Rating : PN 10 / PN 16 /PN 25/150 # / 300 #
End Connection : Wafer Type To Suit   ANSI 150 # Flanges (Other   Standard Also Available On Request)
HIGH PERFORMANCE BUTTERFLY VALVES WAFER TYPE (High Preformance Double   Eccentric Disc Design Buttefly Valve With Pneumatic Actuator )
SPECIFICATIONS:
Model : SDV
Valve Design : Wafer Type High Preformance  Double   Eccentric Disc Design Buttefly Valves
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1,1/2” To 48” (Up To 100” In Fabricated Design)
Material of Construction :
Body   : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Disc : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Stem : S.S. 316, S.S. 304, And S.S.410
Gland Seal : PTFE  (GFT / CFT is available on request)
Seat : EPDM / NITRILE / PTFE
Seat Ring And Set Ring Retainer : S.S. 304
Pressure Rating : PN 10 / PN 16 /PN 25/150 # / 300 #
End Connection : Wafer Type To Suit   ANSI 150 # Flanges (Other   Standard Also Available On Request)
HIGH PERFORMANCE BUTTERFLY VALVES Lug Type (High Preformance Double   Eccentric Disc Design Buttefly Valve With Pneumatic Actuator )
SPECIFICATIONS :
Model : SDV
Valve Design : Lug Type High Preformance  Double   Eccentric Disc Design Buttefly Valves
Actuator : Single Acting (Spring Return) / Double Acting
Size Range : 1,1/2” To 48” (Up To 100” In Fabricated Design)
Material of Construction :
Body   : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Disc : Cast Iron/ Ductile Iron / SG. Iron / Cast Steel/S.S. 304 / S.S. 316 (IS 2062 Gr B For Fabricated Design)
Stem : S.S. 316, S.S. 304, And S.S.410
Gland Seal : PTFE  (GFT / CFT is available on request)
Seat : EPDM / NITRILE / PTFE
Seat Ring And Set Ring Retainer : S.S. 304
Pressure Rating : PN 10 / PN 16 /PN 25/150 # / 300 #
End Connection : Lug Type To Suit   ANSI 150 # Flanges (Other   Standard Also Available On Request)
